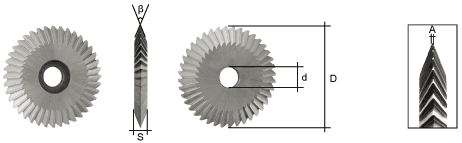

Fraises bi-conique

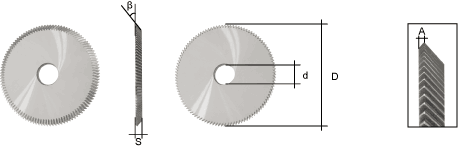

Art. No | Type | Mat. | D | S | d | A | ß | Dents |
[mm] | [mm] | [mm] | [mm] | |||||
14.510.C00 | F21-CA | Carbide | 45 | 3.5 | 16 | 0.15 |
32/14° |
40 |
14.511.C00 | F22-CA | Carbide | 45 | 3.5 | 16 | 0.15 |
14/32° |
40 |
14.512.C00 | F23-CA | Carbide | 45 | 3.5 | 16 | 0.15 |
64° |
40 |
14.513.C00 | F27A-CA | Carbide | 45 | 1.2 | 16 | 0.84 |
4° |
40 |
14.514.C00 | F28-CA | Carbide | 45 | 2 | 16 | 0.64 |
30° |
40 |
14.515.C00 | F29-CA | Carbide | 45 | 2 | 16 | 0.65 |
13/17° |
40 |
14.516.C00 | F30-CA | Carbide | 45 | 2 | 16 | 0.4 |
26° |
40 |
14.517.C00 | F31-CA | Carbide | 45 | 2 | 16 | 0.8 |
10/20° |
40 |
14.518.C00 | F32-CA | Carbide | 45 | 2.5 | 16 | 0.95 |
6/30° |
40 |
14.519.C00 | F33-CA | Carbide | 45 | 2 | 16 | 0.95 |
16° |
40 |
14.520.C00 | F34-CA | Carbide | 45 | 2.5 | 16 | 0.95 |
30/6° |
40 |
14.523.C00 | F53-CA | Carbide | 45 | 2.5 | 16 | 0.9 |
20° |
40 |
14.554.C00 | F54-CA | Carbide | 45 | 2 | 16 | 0.8 |
30° |
40 |
14.555.C00 | F55-CA | Carbide | 45 | 2 | 16 | 0.93 |
30° |
40 |
14.556.C00 | F56-CA | Carbide | 45 | 2 | 16 | 0.7 |
30° |
40 |
14.560.C00 | F60-CA | Carbide | 45 | 2 | 16 | 0.7 |
60° |
40 |
14.561.C00 | F61-CA | Carbide | 45 | 2 | 16 | 0.55 |
30° |
40 |
14.562.C00 | F62-CA | Carbide | 45 | 2.5 | 16 | 0.78 |
30/45° |
40 |
14.563.C00 | F63-CA | Carbide | 45 | 2.5 | 16 | 0.78 |
45/30° |
40 |
14.564.C00 | F64-CA | Carbide | 45 | 2 | 16 | 0.8 |
10° |
40 |

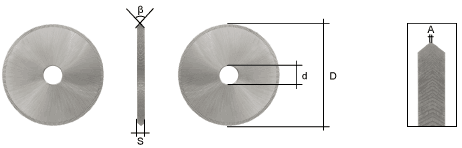

Art. No | Type | Réf. Silca | Mat. | D | S | d | A | ß | Dents |
[mm] | [mm] | [mm] | [mm] | ||||||
16.020.H30 | U01 | D716549ZB | HSS M35 | 60.4 | 5.25 | 9.53 | 0.5 | 80° | 70 |
16.033.H30 | P21 | D911868ZR | HSS M35 | 60.4 | 5.25 | 9.53 | 0.5 | 84° | 70 |
16.504.C00 | U01W | D705933ZB | Carbide | 60.4 | 5.25 | 9.53 | 0.5 | 80° | 70 |

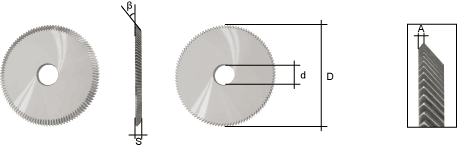

Art. No | Type | Réf. Silca | Mat. | D | S | d | A | ß | Dents |
[mm] | [mm] | [mm] | [mm] | ||||||
14.100.H30 | BLITZ/P08 | D700719ZB | HSS M35 | 40 | 5 | 8 | 0.1 | 42° | 40 |

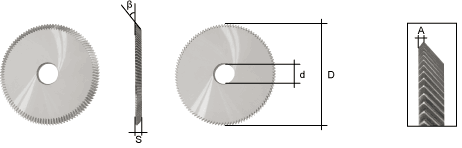

Art. No | Type | Réf. Silca | Mat. | D | S | d | A | ß | Dents |
[mm] | [mm] | [mm] | [mm] | ||||||
12.150.H30 | Punta | D410106ZZ | HSS M35 | 20 | 10 | 10 | 0 | 80 | |
12.350.H30 | D401866ZZ | HSS M35 | 25 | 10 | 10 | 0 | 100° | 80 | |
16.021.H30 | O1 | D702844ZB | HSS M35 | 60.4 | 7.2 | 9.53 | 0 | 100° | 80 |
16.022.H30 | O2 | D702845ZB | HSS M35 | 60.4 | 7.6 | 9.53 | 1 | 100° | 80 |
16.023.H30 | O3 | D702846ZB | HSS M35 | 60.4 | 6.9 | 9.53 | 1 | 100° | 80 |
16.024.H30 | O4 | D702847ZB | HSS M35 | 60.4 | 7.2 | 9.53 | 1 | 85° | 80 |
16.025.H30 | A1 | D702220ZB | HSS M35 | 60.4 | 8.95 | 9.53 | 0 | 110° | 80 |
16.026.H30 | A2 | D702221ZB | HSS M35 | 60.4 | 8.95 | 9.53 | 0.8 | 90° | 80 |
16.027.H30 | A3 | D702222ZB | HSS M35 | 60.4 | 9.5 | 9.53 | 1.5 | 90° | 80 |
16.040.H30 | A4 | D705691ZB | HSS M35 | 60.4 | 8.9 | 9.52 | 0.55 | 110° | 80 |
16.041.H30 | D1 | D705634ZB | HSS M35 | 60.4 | 7.6 | 9.52 | 0.8 | 100° | 80 |
16.042.H30 | DK1 | D702848ZB | HSS M35 | 60.4 | 8.55 | 9.52 | 0 | 105° | 80 |
16.043.H30 | DK2 | D702849ZB | HSS M35 | 60.4 | 8.55 | 9.52 | 0.7 | 105° | 80 |
16.044.H30 | NL1 | D704246ZB | HSS M35 | 60.4 | 8.25 | 9.52 | 0 | 113° | 80 |
16.303.H30 | CW-1012 | D702851ZB | HSS M35 | 60.4 | 9.53 | 9.53 | 0 | 85° | 80 |

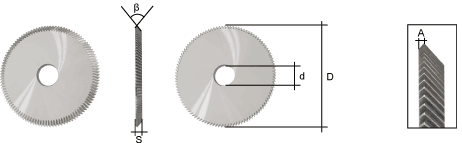

Art. No | Type | Réf. Silca | Mat. | D | S | d | A | ß | Dents |
[mm] | [mm] | [mm] | [mm] | ||||||
18.050.H30 | P01 | D700875ZB | HSS M35 | 80 | 5 | 16 | 1 | 84° | 110 |
18.051.H30 | P01 | D700875ZB | HSS M35 | 80 | 5 | 16 | 1 | 84° | 120 |
18.053.H30 | P03 | D401642ZZ | HSS M35 | 80 | 7 | 16 | 1 | 100° | 100 |
18.501.C00 | P01W | D704861ZB | Carbide | 80 | 5 | 16 | 1 | 84° | 110 |
Art. No | Type | Mat. | D | S | d | A | ß | Dents |
[mm] | [mm] | [mm] | [mm] | |||||
16.019.H30 | ECCO-009 | HSS M35 | 63 | 5 | 16 | 1 | 84° | 80 |
16.301.H30 | TUCSON | HSS M35 | 63 | 5 | 16 | 1.25 | 80° | 80 |
18.070.C00 | ERREBI | Carbide | 80 | 5 | 16 | 1.25 | 84° | 110 |
18.070.H30 | ERREBI | HSS M35 | 80 | 5 | 16 | 1.25 | 84° | 110 |
18.180.H30 | Dakota | HSS M35 | 80 | 5 | 16 | 1 | 84° | 110 |
18.842.H30 | HSS M35 | 80 | 8 | 16 | 0 | 90 | 110 |
Art. No | Type | Mat. | D | S | d | A | ß | Dents |
[mm] | [mm] | [mm] | [mm] | |||||
14.301.C00 | FP2W | Carbide | 40 | 6 | 10 | 0.1 | 35/22.5° | 40 |
Art. No | Type | Réf. Silca | Mat. | D | S | d | A | ß | Dents |
[mm] | [mm] | [mm] | [mm] | ||||||
16.012.H20 | 10MC | HSS M2 | 69.85 | 7.1 | 22.22 | 0.4 | 60° | 110 | |
16.013.H20 | 11MC | HSS M2 | 60.32 | 7.11 | 12.7 | 0.4 | 60° | 95 | |
16.014.H20 | 16MC | HSS M2 | 60.32 | 6.35 | 12.7 | 0.4 | 40°/5° | 100 | |
16.016.H20 | 8UC | HSS M2 | 60.32 | 6.14 | 9.53 | 0.89 | 45° | 72 | |
16.018.H30 | CU14 | KD14 | HSS M35 | 63 | 5 | 16 | 1.25 | 80° | 80 |
16.550.H30 | 36MC | HSS M35 | 60.32 | 9.53 | 9.53 | 0 | 90° | 72 | |
18.000.C00 | R06060 | Carbide | 80 | 5 | 16 | 0 | 80° | 110 | |
18.000.H30 | R06060 | HSS M35 | 80 | 5 | 16 | 1.3 | 80° | 110 | |
18.001.H30 | CU100 | KD100 | HSS M35 | 80 | 5 | 16 | 1 | 80° | 100 |
18.002.H30 | CU11/26MC | KD75A | HSS M35 | 80 | 5 | 16 | 1.25 | 80° | 100 |
18.039.H30 | CU50A | KD50A | HSS M35 | 80 | 5 | 16 | 0.5 | 80° | 110 |
18.150.H30 | RO 7903 | HSS M35 | 80 | 7 | 16 | 3.35 | 60° | 110 |
Art. No | Type | Mat. | D | ß | Dents |
[mm] | |||||
17.020.H20 | 750C | HSS M2 | 70 | 90° | 140 |
17.028.H20 | TMC 7504 | HSS M2 | 70 | 90° | 140 |
17.029.H20 | TMC 7505 | HSS M2 | 70 | 110° | 140 |
17.031.H20 | TMC 7516 | HSS M2 | 70 | 60° | 180 |
17.032.H20 | TZ 001 | HSS M2 | 73 | 60° | 100 |
Art. No | Type | Mat. | D | S | d | A | ß | Dents |
[mm] | [mm] | [mm] | [mm] | |||||
18.027.H30 | TOC 2HSS | HSS M35 | 80 | 5 | 16 | 1.1 | 84° | 100 |
18.030.H30 | TMC 7515 | HSS M35 | 80 | 5 | 12.7 | 1.1 | 84° | 100 |
Art. No | Type | Mat. | D | S | d | A | ß | Dents |
[mm] | [mm] | [mm] | [mm] | |||||
16.045.H30 | ASSA 90 | HSS M35 | 60 | 7.6 | 10 | 1.3 | 90° | 40 |
16.046.H30 | ASSA 105 | HSS M35 | 60 | 8 | 10 | 0.9 | 105° | 40 |
Art. No | Type | Mat. | D | S | d | A | ß | Dents |
[mm] | [mm] | [mm] | [mm] | |||||
15.008.H20 | ASTRO II | HSS M2 | 53 | 6 | 12 | 0.4 | 45/25° | 72 |
15.009.H20 | ASTRO III | HSS M2 | 50 | 6 | 12 | 0.4 | 45/25° | 72 |
15.010.H20 | KIS 15 R | HSS M2 | 53 | 6.35 | 12.7 | 0.6 | 45/15° | 72 |
17.011.H20 | KIS Super Major | HSS M2 | 70 | 6.35 | 8 | 0.6 | 45/15° | 72 |
17.038.H20 | ASTRO I | HSS M2 | 70 | 5.5 | 12.7 | 2 | 60° | 106 |
Art. No | Type | Mat. | D | S | d | A | ß | Dents |
[mm] | [mm] | [mm] | [mm] | |||||
17.050.H30 | Bianchi | HSS M35 | 75 | 5 | 10 | 1 | 84° | 100 |
17.050.H40 | Bianchi | ASP 30 | 75 | 5 | 10 | 1 | 84° | 100 |
18.003.C00 | 8954-000-001 | Carbide | 80 | 4.4 | 16 | 0 | 80° | 100 |
18.003.H30 | 8954-000-001 | HSS M35 | 80 | 4.4 | 16 | 0.8 | 80° | 100 |
18.502.C00 | 80° A1-CA / CU11-C89 | Carbide | 80 | 5 | 16 | 1 | 80° | 100 |
18.503.C00 | 26MC CA / CU100 | Carbide | 80 | 5 | 16 | 1.25 | 80° | 100 |
Art. No | Type | Mat. | D | S | d | A | ß | Dents |
[mm] | [mm] | [mm] | [mm] | |||||
16.005.H20 | HK 15/45° | HSS M2 | 68 | 6 | 16 | 1.5 | 15/45° | 110 |
16.006.H20 | HK 30/45° | HSS M2 | 68 | 6 | 16 | 1.5 | 30/45° | 110 |
16.007.H20 | HK 29/44° | HSS M2 | 68 | 6 | 16 | 1.5 | 29/44° | 110 |
Art. No | Type | Mat. | D | S | d | ß | Dents |
[mm] | [mm] | [mm] | |||||
15.053.H20 | KURT | HSS M2 | 50.3 | 5.2 | 10 | 45/46° | 60 |
Art. No | Type | Mat. | D | S | d | ß | Dents |
[mm] | [mm] | [mm] | |||||
15.150.H30 | KURT | HSS M35 | 52 | 7.4 | 10 | 20/40° | 50 |

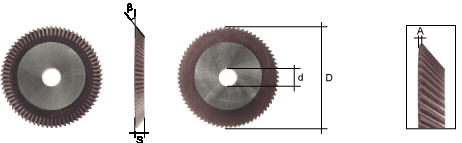

Fraise bi-conique + TiAIN
Art. No | Type | Réf. Silca | Mat. | D | S | d | A | ß | Dents |
[mm] | [mm] | [mm] | [mm] | ||||||
16.504.C00.N | U01 W | D705933ZB | Carbide | 60.4 | 5.25 | 9.53 | 0.5 | 80 | 70 |
